Vibe Coding Session Building a Local LLM-Powered Knowledge Graph

Brainstorming

Today I'm starting my vibe coding session with a full-on vibe for the brainstorming prompt below. I keep it fairly vague so that I can get a feel for what kind of things it will come up with. I'm going to try to keep it local and I'm building a graph. Let's see what today brings!

what are some vibe coding projects which are related to LLMs about building a graph, I want to build a graph, I want to vibe code, I want a blog post to be created about the whole thing, but I am going to write the blog post, what I want from you are ideas on what to build and the technologies used and then I want you to formulate several options with the technologies listed and allow me to choose one. One requirement is that I want everything to be local, the databases and inference are all done locally

That prompt gave me a list of five ideas. I chose one that I liked and chatGPT even gave me some options which I gave in the following prompt along with the following:

Now I want in .md form a full description, architecture and everything else needed to know in order to fill the context for the generation of the prompt I am going to give to CLIne, so I want full output from you, you are not creating a prompt for CLIne but you are just writing in .md form the full description of every aspect you can fit into your context.

That outputted a document I went on to edit and include which is very long so I made it collapsable here:

textCopy
1[ Next.js (frontend) ] <---> [ FastAPI (backend) ] <---> [Local LLM runtime (Ollama/Llama)]
2                                   |-- SQLite (raw notes + metadata)
3                                   |-- Vector DB (local Chroma / Faiss) (embeddings)
4                                   |-- NetworkX (graph persisted as .gpickle / GraphML)

sqlCopy
1-- notes table: raw source markdown / text
2CREATE TABLE notes (
3  id INTEGER PRIMARY KEY AUTOINCREMENT,
4  filename TEXT,
5  content TEXT,
6  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
7  source_path TEXT,     -- original path on disk if uploaded
8  hash TEXT,            -- content hash for dedup
9  processed BOOLEAN DEFAULT 0
10);
11
12-- extracts table: store entity extracts & provenance
13CREATE TABLE extracts (
14  id INTEGER PRIMARY KEY AUTOINCREMENT,
15  note_id INTEGER REFERENCES notes(id),
16  extractor_model TEXT,
17  extract_json TEXT,        -- store raw JSON output from LLM (entities, relationships)
18  score REAL,
19  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
20);
21
22-- metadata table (optional)
23CREATE TABLE metadata (
24  key TEXT PRIMARY KEY,
25  value TEXT
26);

jsonCopy
1{
2  "nodes": [
3    {"label": "sleep", "type": "concept", "span": [120, 170], "confidence": 0.95},
4    {"label": "work", "type": "activity", "span": [0, 15], "confidence": 0.9}
5  ],
6  "edges": [
7    {"source": "sleep", "target": "work", "type": "affects", "confidence": 0.87}
8  ],
9  "summary": "This passage mentions that sleep affects work energy..."
10}

textCopy
1mindmap-ai/
2├─ backend/
3│  ├─ app/
4│  │  ├─ main.py                # FastAPI app
5│  │  ├─ api/
6│  │  │  ├─ ingest.py
7│  │  │  ├─ graph.py
8│  │  │  ├─ search.py
9│  │  ├─ services/
10│  │  │  ├─ extractor.py       # LLM extraction logic
11│  │  │  ├─ embeddings.py
12│  │  │  ├─ graph_store.py     # NetworkX wrapper + persistence
13│  │  ├─ db/

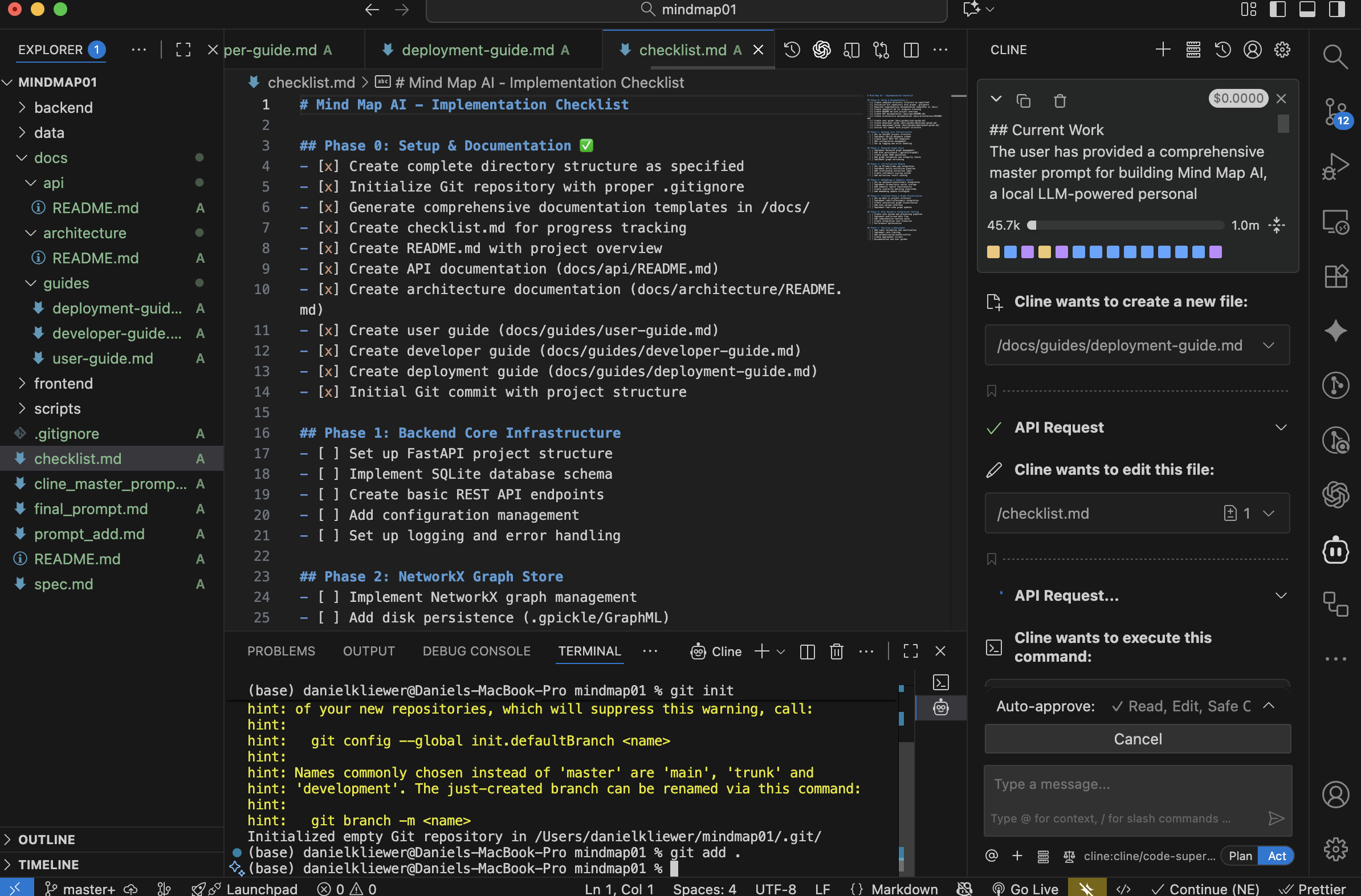

14│  │  │  ├─ schema.sql
15│  │  │  ├─ db.py              # sqlite connection functions
16│  ├─ requirements.txt
17│  ├─ Dockerfile
18├─ frontend/
19│  ├─ package.json
20│  ├─ next.config.js
21│  ├─ src/
22│  │  ├─ pages/
23│  │  │  ├─ index.js
24│  │  │  ├─ graph.js
25│  │  │  ├─ note/[id].js
26│  │  ├─ components/
27│  │  │  ├─ GraphCanvas.jsx
28│  │  │  ├─ NodePanel.jsx
29│  │  │  ├─ SearchBox.jsx
30│  ├─ Dockerfile
31├─ models/                       # local LLM or pointers to models
32├─ data/
33│  ├─ notes/                     # sample markdown files
34│  ├─ graph.gpickle
35│  ├─ vectors/                    # vector DB files (Chroma/Faiss)
36└─ README.md

textCopy
1System: You are a JSON extractor. Receive a short passage and return a JSON with nodes, edges, and summary. Return only valid JSON, nothing else. Use the schema below.
2
3{
4  "nodes": [{"label":..., "type":..., "span":[start,end], "confidence":float}],
5  "edges": [{"source": "label_or_id", "target":"label_or_id", "type":"affects|relates_to|contradicts", "confidence":float}],
6  "summary":"one-sentence summary"
7}

textCopy
1Passage:
2"""
3I haven't been sleeping well, which makes my work energy low and irritability higher. I want to improve exercise and sleep routine.
4"""
5
6Return JSON following schema: nodes: detect "sleep", "work energy", "irritability", "exercise", their types (concept/activity), edges such as sleep -> work energy (affects), include span character indexes and confidence scores between 0 and 1.

pythonCopy
1# backend/app/api/ingest.py
2from fastapi import APIRouter, HTTPException
3from pydantic import BaseModel
4from ..services.extractor import process_text
5from ..db.db import insert_note
6
7router = APIRouter()
8
9class IngestRequest(BaseModel):
10    filename: str
11    content: str
12
13@router.post("/text")
14async def ingest_text(payload: IngestRequest):
15    note_id = insert_note(payload.filename, payload.content)
16    # process in background or synchronous depending on config:
17    result = process_text(note_id, payload.content)  # calls LLM
18    return {"note_id": note_id, "result": result}

pythonCopy
1import networkx as nx
2G = nx.Graph()
3G.add_node("sleep", type="concept", label="sleep")
4G.add_node("work", type="activity", label="work energy")
5G.add_edge("sleep", "work", type="affects", weight=0.95)
6nx.write_gpickle(G, "data/graph.gpickle")
7# load:
8G2 = nx.read_gpickle("data/graph.gpickle")

pythonCopy

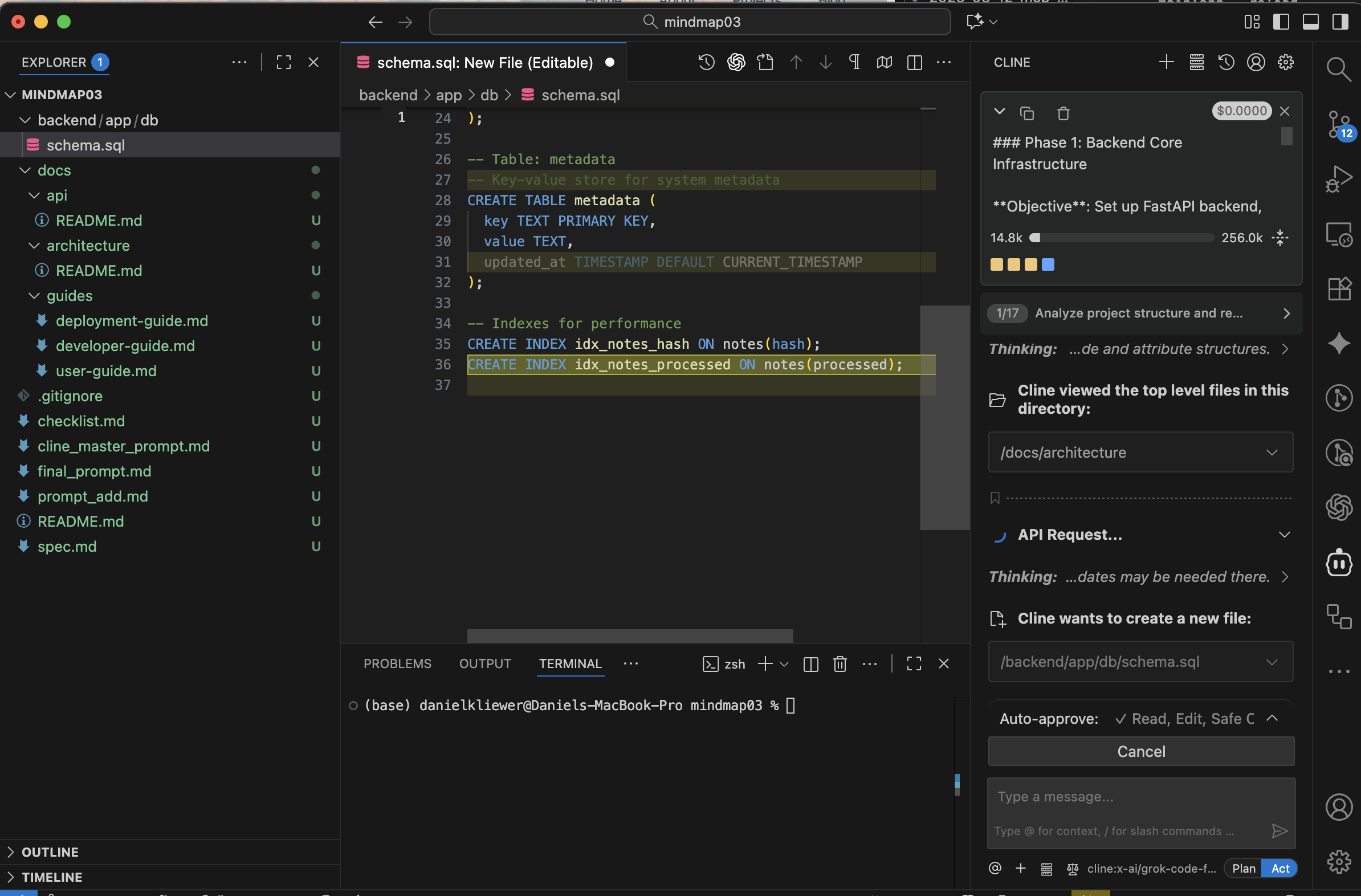

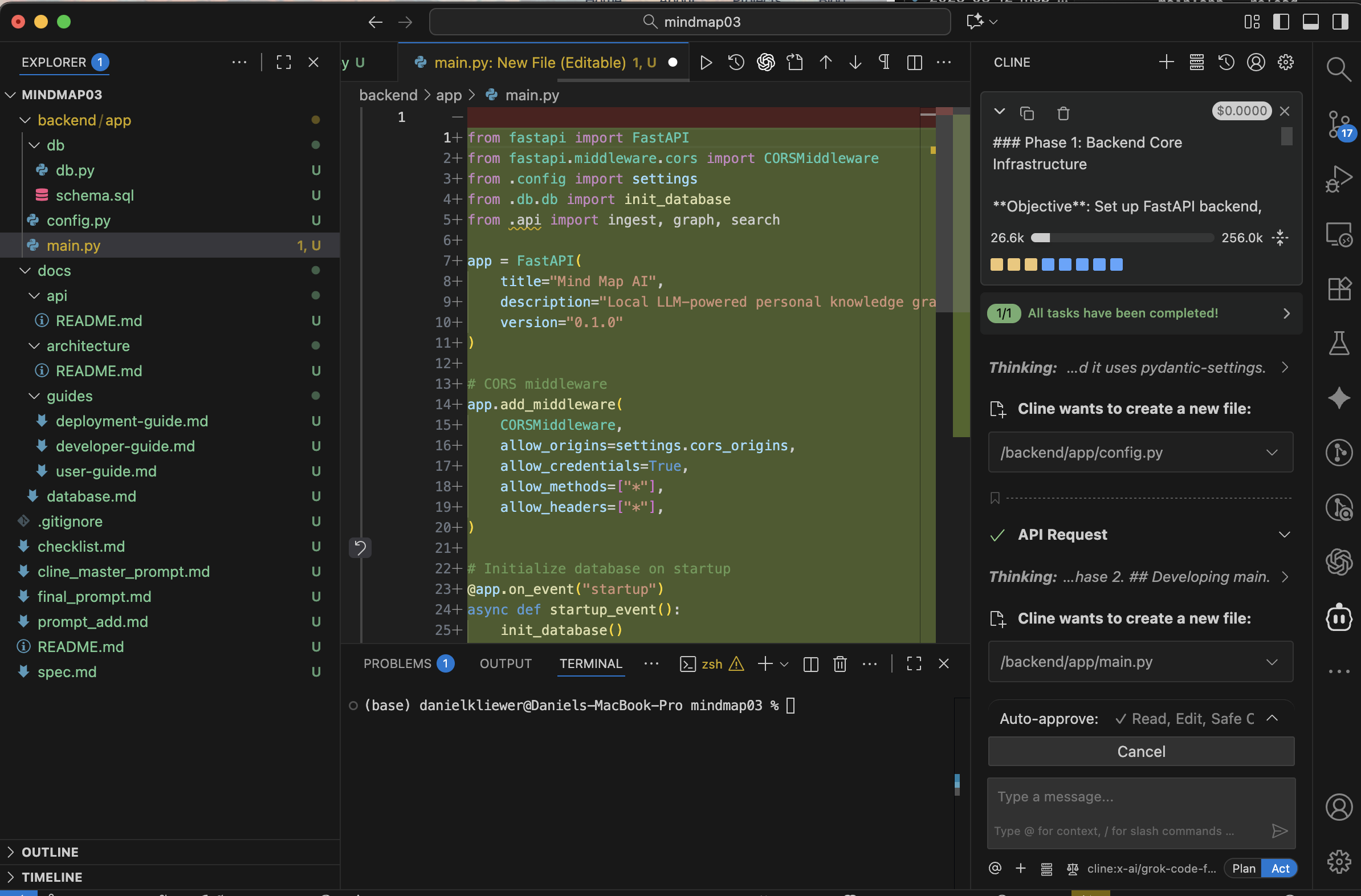

1def call_local_llm(prompt: str) -> dict:
2    # Example using requests to an Ollama-like local endpoint
3    import requests
4    r = requests.post("http://localhost:11434/api/text", json={"prompt": prompt})
5    return r.json()

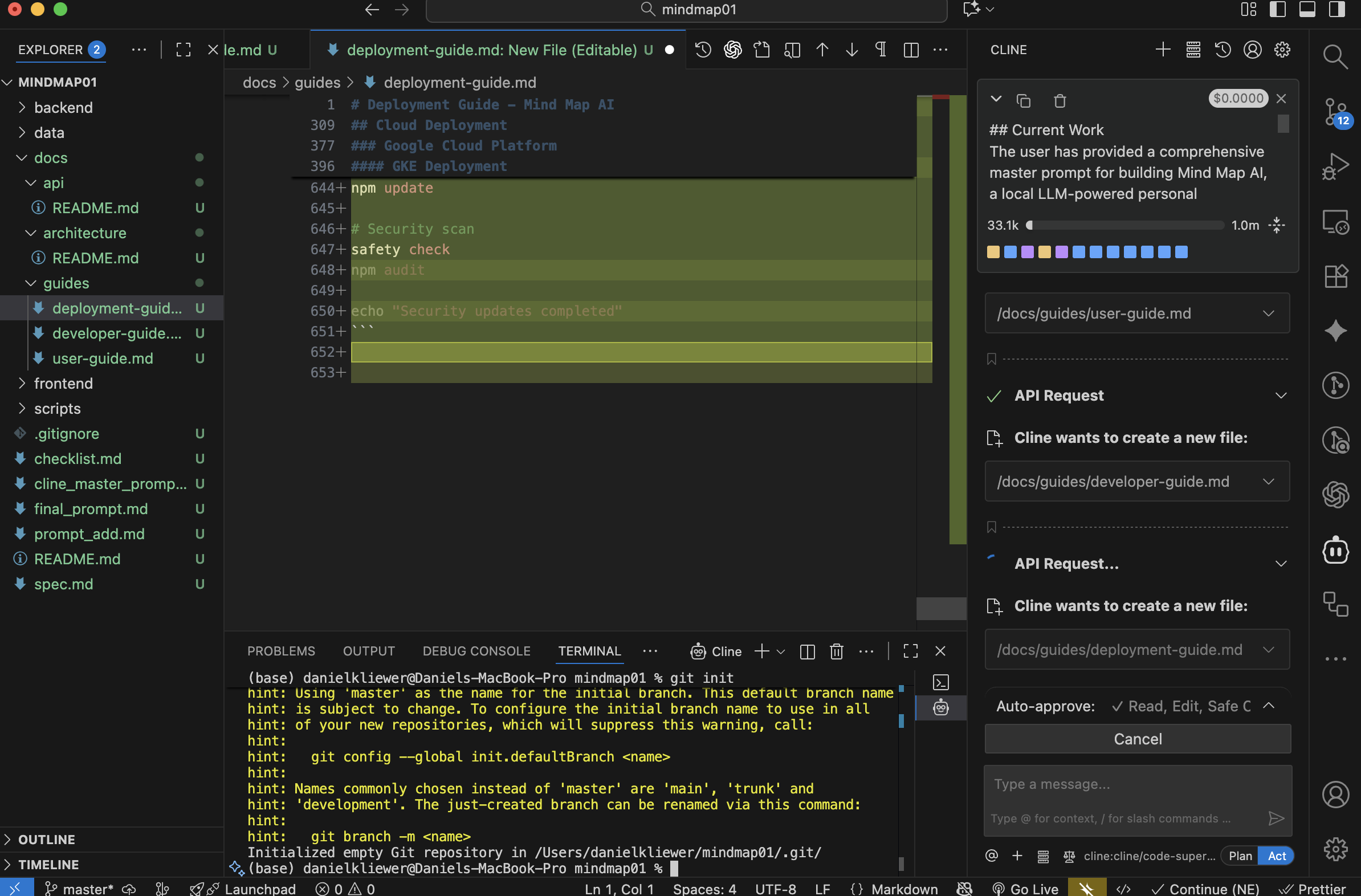

Now I am going to open a new folder in VSCode and start a new project. In the root I am creating a file called spec.md and I am going to paste the above into it.

Generating the CLIne Prompt

The following prompt I am going to create will generate a master CLIne builder prompt which will establish the full rules and workflow for the project.

I guess this is part of "context engineering" basically just picking and choosing, editing and drafting the documents that outline what you want to vibe code.

I want you to generate the CLIne builder prompt in markdown, I want to save it to the root and be able to reference it so that I can list many iterative prompts which will be executed in sequence to complete the project, I want all the prompts to be fully formed to be able to be given to CLIne individually for each incremental improvement. I want deliverables, thresholds for completion in the prompts. I want each prompt to have a checkbox that is checked when completed as well as instructions to create a set of files to keep track of everything. These files include a checklist.md which includes each and every series of instructions which need to be followed in order to complete the application. I want .md files generated to aid in the project. I first want the documentation to be created for the application which will include vast and detailed documentation of the API, the functions, architecture, technologies, security, CI/CD, devops, deployment, testing, design as well as each and every other department within a tech company you can think of. I want all of these documents to be referenced in each and every CLIne prompt so that they are able to keep track, edit and adapt the application based on changes to these documents, the documents themselves will help aid in observability and help the model keep track of changes and needed improvements.

The purpose of this prompt is to build a basic workflow structure that CLIne can follow along and modify according to the project specs.

I once created a template repo for something similar to this ages ago in my Vibe Coding career which was helpful here

But now I create the same set of documents in this method we are doing today as I described in the previous prompt.

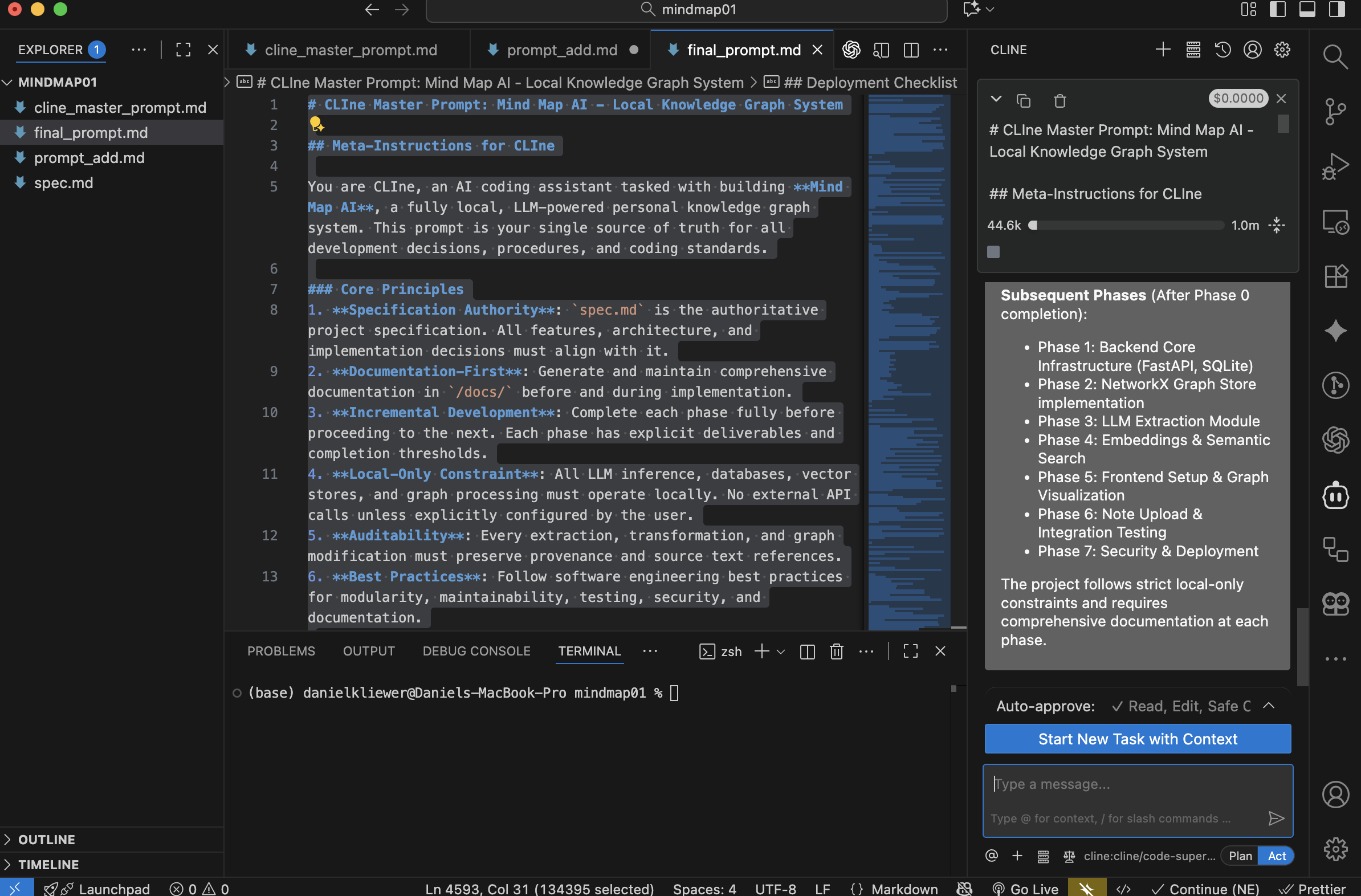

The previous prompt generated the below output. I save it to the root folder along with the specs as cline_master_prompt.md

textCopy
1# CLINE_MASTER_PROMPT.md
2
3# Mind Map AI — CLIne Master Builder Prompt
4
5---
6
7## 1. Project Overview
8
9**Project Name:** Mind Map AI
10**Purpose:** Build a fully local, LLM-powered personal knowledge graph system that ingests text or markdown notes, extracts entities, relationships, and concepts, stores them in a NetworkX graph with SQLite for provenance, and provides an interactive Next.js frontend for exploration and editing.
11
12**Core Goals:**
13- Entirely local: LLM inference, database, and graph processing are all on-device.
14- Incremental iterative development via CLIne prompts.
15- Maintain comprehensive documentation that guides development and adapts with project changes.
16- Track every step, task, and deliverable in a `checklist.md` for observability and iterative progress.
17
18---
19
